Summary

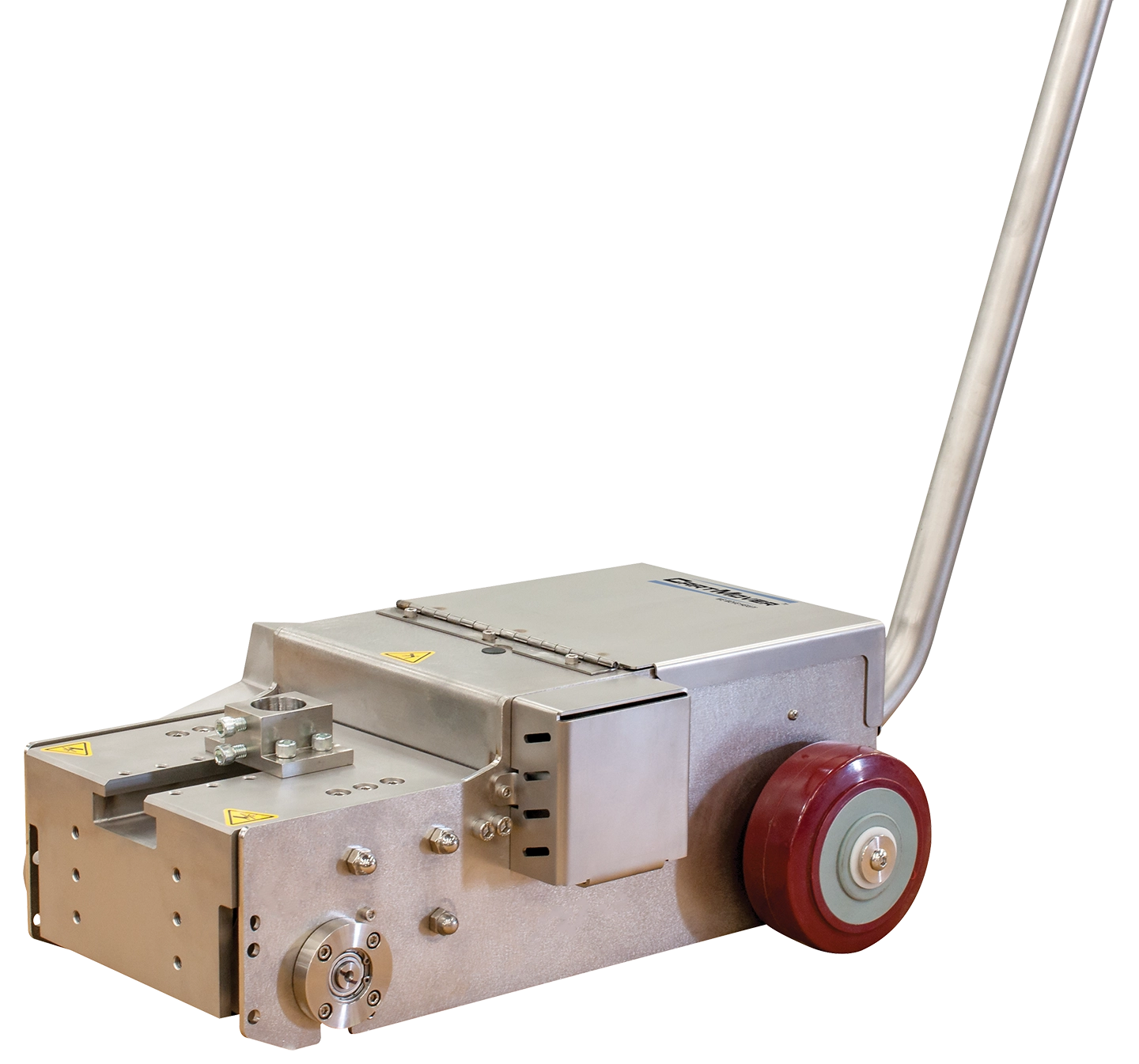

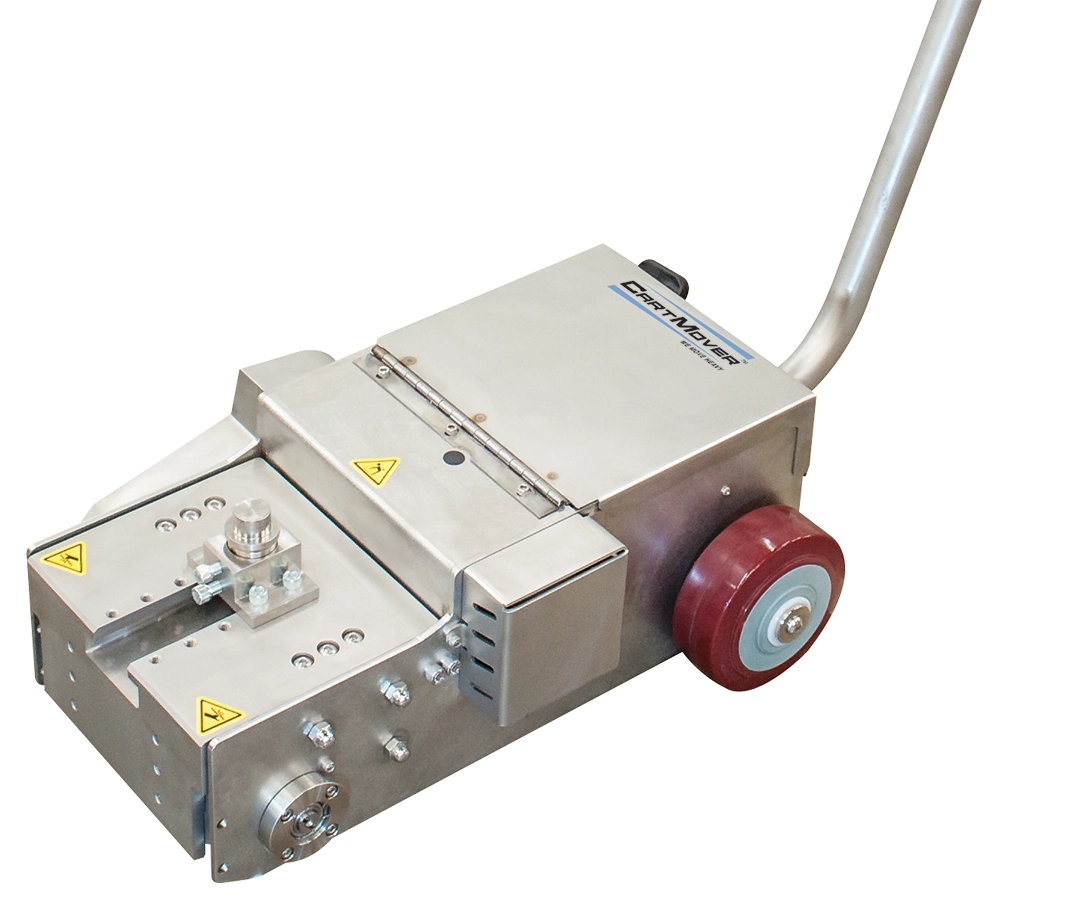

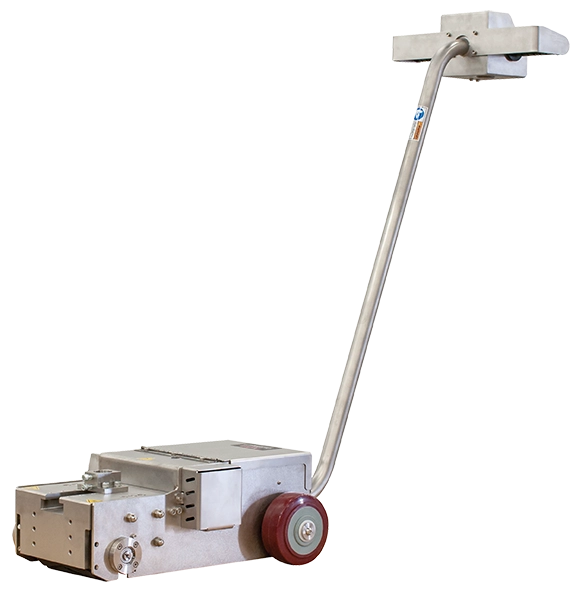

IP65 CartMover™

For food or pharmaceutical manufacturing and other wash-down environments

The IP65 CartMover™ by Appleton Mfg. is an advanced material handler specifically designed for food and pharmaceutical manufacturing environments, as well as other wash-down settings. Constructed from stainless steel, it is robust and durable, capable of moving loads from 100 lbs to 20,000 lbs, depending on environmental conditions. Already in use by some of the largest food and pharmaceutical manufacturing companies, the IP65 CartMover™ is field tested and production ready.

  • Capacity: 5 tons (SD and IP65)
  • 24v rechargeable NiCAD Battery
  • Push/Pull Speed: 209 fpm max (2.4 mph)
  • Rugged welded frame construction
  • Variable speed wig wag or twist grip throttle available
  • "Belly button" emergency stop switch


*Depending on environmental conditions. Contact us for more details.

Perfect for food or pharmaceutical manufacturing, the IP65 CartMover™ is designed for even the most regulated wash-down environments. Already in use by multiple manufacturing companies, the IP65 CartMover™ is field tested and production ready.

Key features include a sealed speed controller housing, sealed controls in the handlebar, and a duty-rated motor and gearbox, ensuring reliable performance even in challenging environments.

A notable feature of the IP65 CartMover™ is its internal "fender" around the drive roller, which deflects splash-up, making it suitable for environments where hygiene and cleanliness are paramount. The device also includes duty-rated electrical connectors on harnesses, enhancing its durability and longevity in wet conditions. This focus on sealed features and durability makes it an ideal choice for industries with stringent cleanliness standards.

Product Information

IP65 CartMover™ for Food or Pharmaceutical Mfg. and other Wash-down Environments

Already in use by some of the largest Food and Pharmaceutical manufacturing companies, the IP65 CartMover™ is field tested and production ready.

  • A modified Standard Duty CartMover™
  • Capacity: 100 lbs - 20,000 lbs*
  • Constructed from Stainless Steel
  • Internal "fender" around drive roller to deflect splash up
  • Sealed speed controller housing

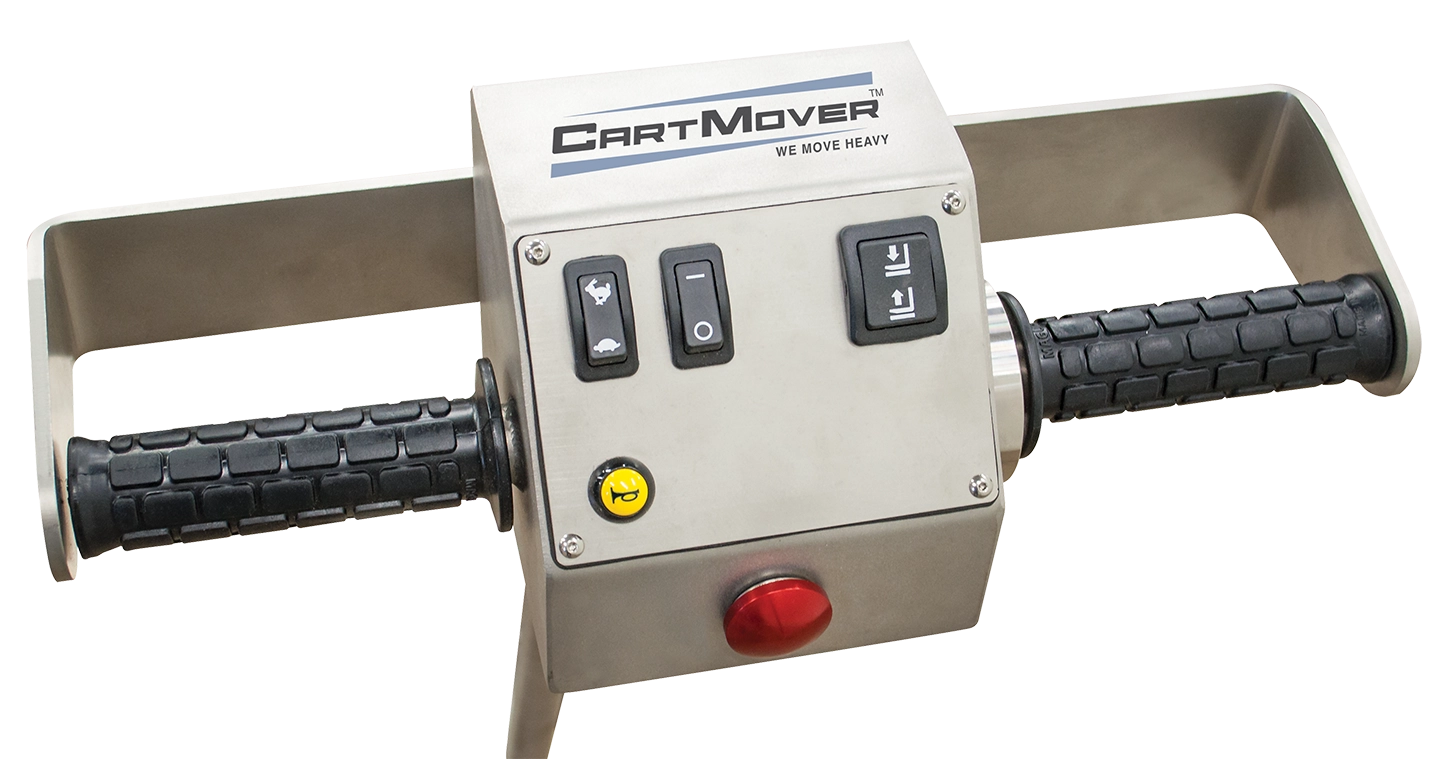

  • Sealed controls in handlebar
  • Duty rated motor and gearbox
  • Duty rated electrical connectors on harnesses

*Depending on environmental conditions. Contact Appleton Mfg. Division for details.

Options

Customization is another strong point of the IP65 CartMover™, with a variety of hitch options available to suit different applications. Appleton Mfg. offers the capability to fabricate hitches tailored to specific needs, ensuring compatibility and ease of use across various carts and trolleys. This flexibility makes the IP65 CartMover™ a versatile tool for diverse material handling requirements.

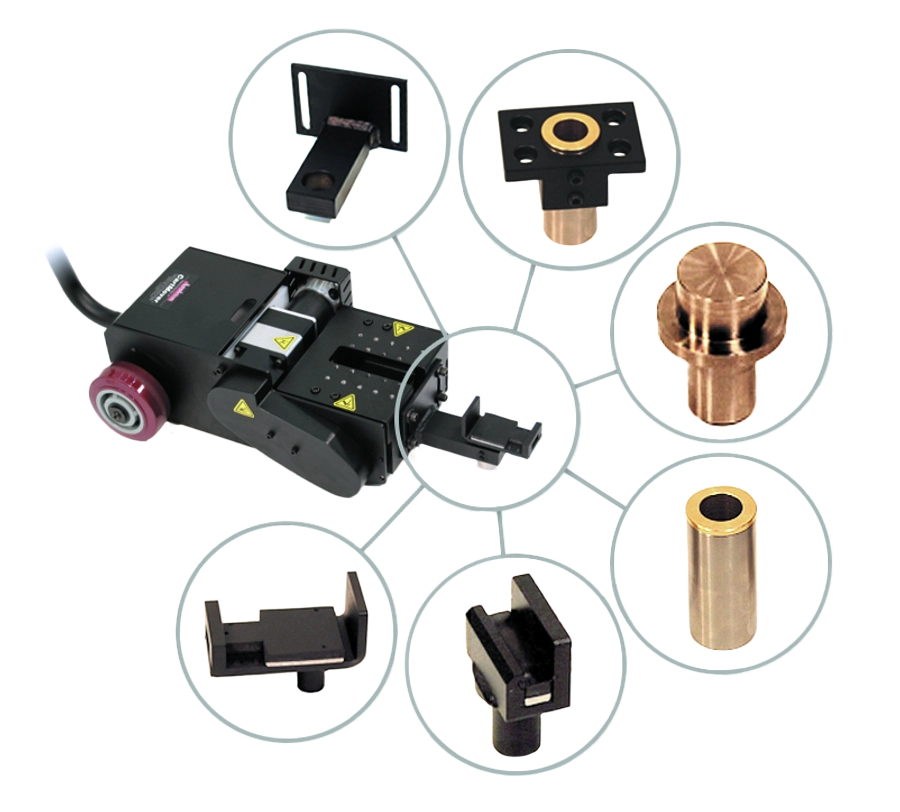

This image is a partial representation of available hitches for the CartMover™ and IP65 CartMover™. These options are suitable for most applications, however, we can fabricate a hitch to suit your needs and application. Contact us for more details.


Demo Program

Test the IP65 CartMover™ risk free! An on-site demo offers unique advantages

The IP65 CartMover™ comes with a risk-free demo program, allowing potential users to test its ease of operation, maneuverability, and control on-site.

  • See firsthand how easy the IP65 CartMover™ is to operate, maneuver and control
  • Get input from users about how the IP65 CartMover™ helps them work faster and safer
  • Examine the IP65 CartMover's quality construction and perfect balance right before your eyes
  • Experience just how easy it is to remove and recharge the battery pack
  • See how the IP65 CartMover's ease of use increases workflow and helps reduce worker injury
