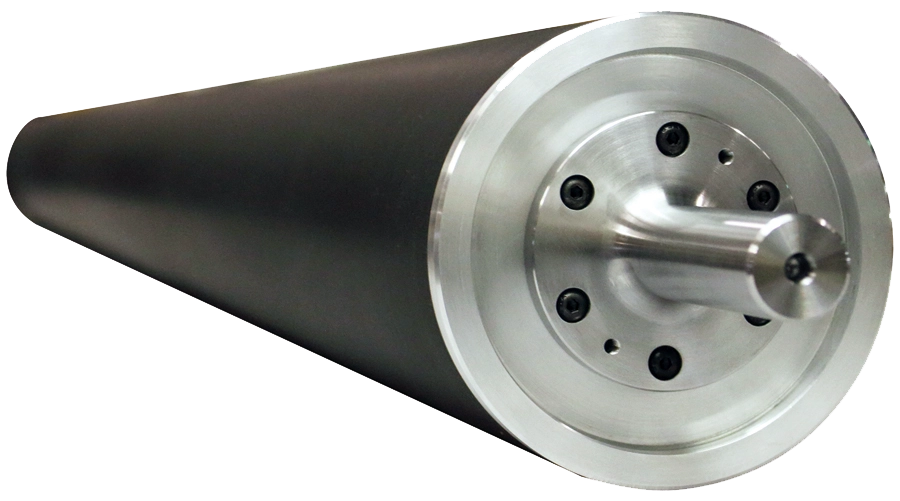

Carbon Fiber Composite Live

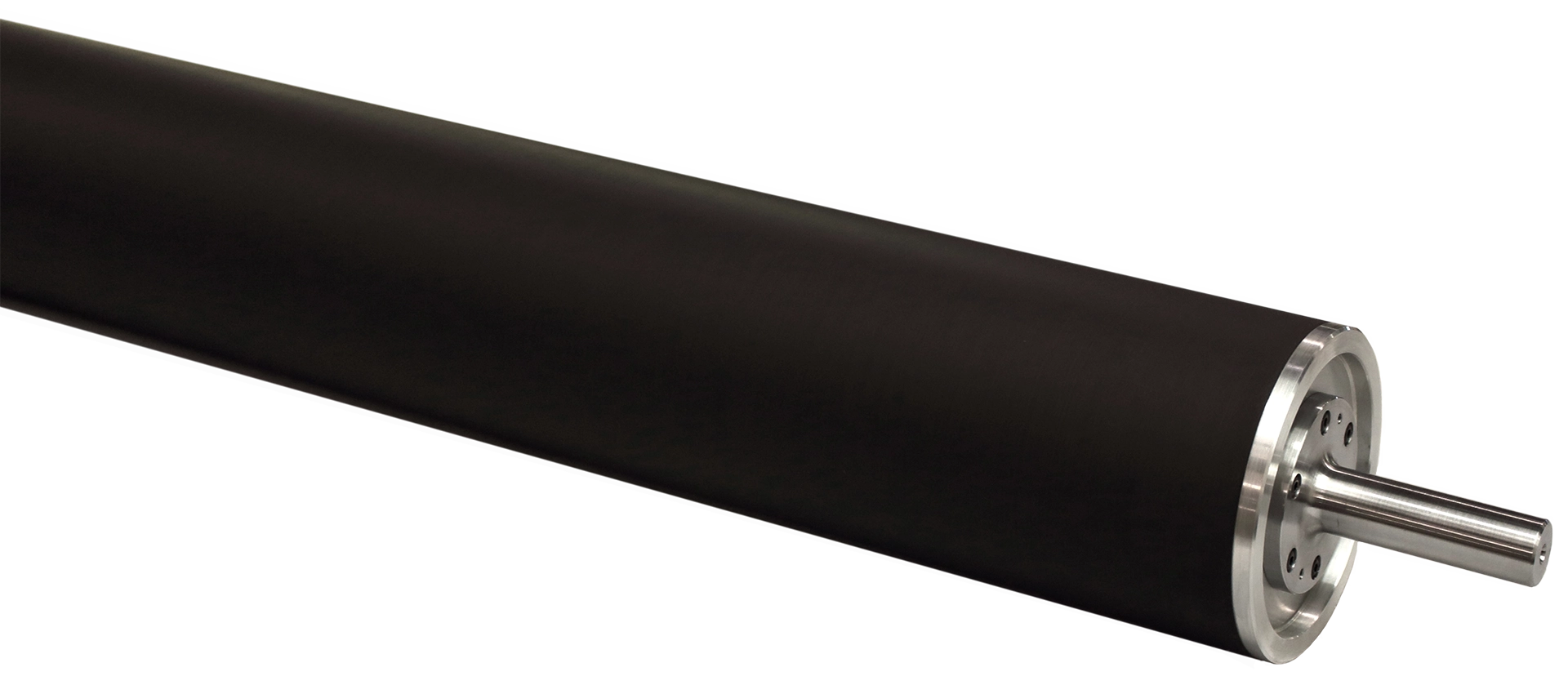

Carbon Fiber Composite Live
Carbon Fiber Ider Roller
Carbon Fiber Composite Dead Shaft Black Bearing
Carbon Fiber Composite Live
Carbon Fiber Composite Live

Carbon Fiber Idler Rollers

Receive a quote arrow

I’d Like:

By submitting this form, you are consenting to receive product updates and company announcements from the Double E Group.

Summary

Carbon Fiber Idler Rollers

Double E Group composite Idlers are made using 1/8" wall (3/16" in larger sizes), carbon fiber/epoxy matrix composite. The tube has nearly double the stiffness-to-weight ratio of aluminum and provides unparalleled low rotating inertia.

Double E Group carbon fiber composite idlers offer superior performance. These idlers are ideal for running wide, light weight webs at higher critical speeds, and are the lightest standard idlers Double E Group manufactures.

These idlers are dynamically balanced to ISO grade G6.3. Each roll is machined to precision tolerances and has a 63 RMS surface finish across the face.

Advantages:

  • Lowest rotating inertia of any Double E Group idler
  • High strength to weight ratio
  • Higher critical speeds
  • Non-corrosive in ambient environment
  • Better tension control
  • Durable, wear resistant coating


Product Information

Specifications - Dead Shaft

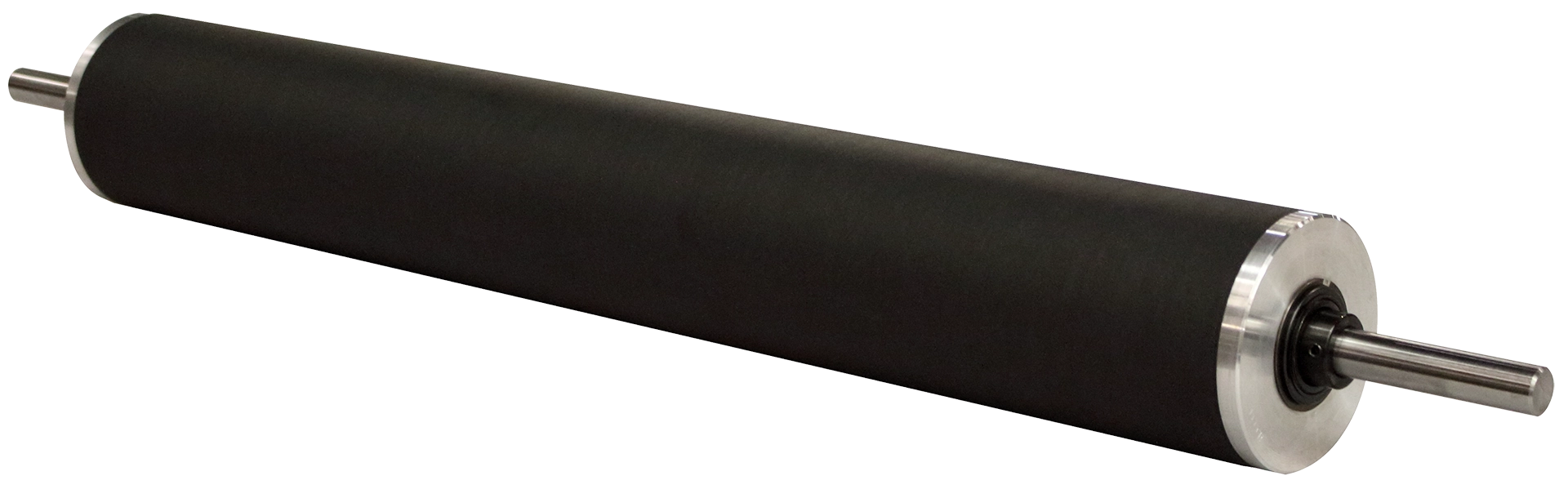

"Dead shaft" idler rollers have a bearing in the idler roll body and therefore the dead shaft (axle) remains stationary. The shaft is fixed to the machine frame in various manners.



Carbon Fiber Dead Shaft Illustrations & Specifications

ROLLER SPECIFICATIONS DRAWING

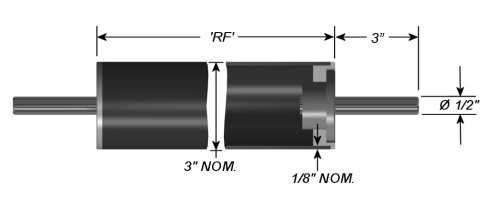

3.0" Nominal Outside Diameter
(P/N: COMP-3.0-0.5-RF-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:

- Roll face to 36": 0.003" T.I.R.
- Roll face to 64": 0.005" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M.

Low drag, shielded bearings for 1/2" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 3.0

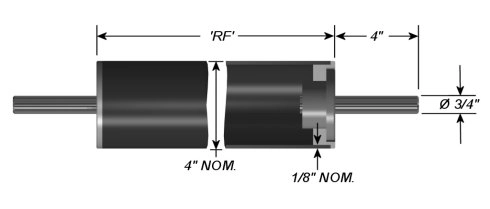

4.0" Nominal Outside Diameter

(P/N: COMP-4.0-0.75-RF-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:

- Roll face to 52": 0.003" T.I.R.
- Roll face to 92": 0.006" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M.

Low drag, shielded bearings for 3/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 4.0

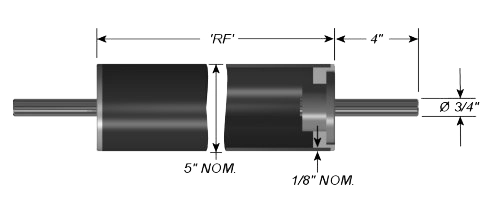

5.0" Nominal Outside Diameter

(P/N: COMP-5.0-0.75-RF-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 68": 0.005" T.I.R.
- Roll face to 92": 0.007" T.I.R.
- Roll face to 128": 0.009" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Low drag, shielded bearings for 3/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 5.0

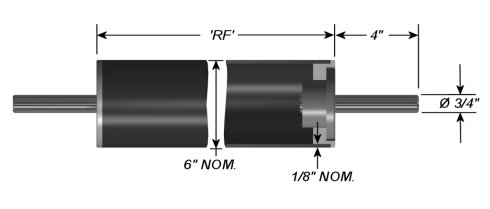

6.0" Nominal Outside Diameter

(P/N: COMP-6.0-0.75-RF-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 60": 0.005" T.I.R.
- Roll face to 112": 0.008" T.I.R.
- Roll face to 136": 0.010" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Low drag, shielded bearings for 3/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 6.0

8.0" Nominal Outside Diameter

(P/N: COMP-8.0-0.75-RF-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 78": 0.006" T.I.R.
- Roll face to 126": 0.009" T.I.R.
- Roll face to 180": 0.012" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 2500 F.P.M.

Low drag, shielded bearings for 1-1/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 8.0

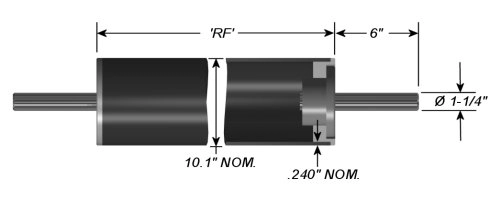

10.0" Nominal Outside Diameter

(P/N: COMP-10.0-1.25-RF-OS)

Tube: Carbon fiber / epoxy matrix composite. 1/8" Nom. wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 78": 0.006" T.I.R.
- Roll face to 126": 0.009" T.I.R.
- Roll face to 180": 0.012" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 2500 F.P.M.

Low drag, shielded bearings for 1-1/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 10.0

12.0" Nominal Outside Diameter

(P/N: COMP-12.0-1.25-RF-OS)

Tube: Carbon fiber / epoxy matrix composite. 1/8" Nom. wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 90": 0.007" T.I.R.
- Roll face to 144": 0.009" T.I.R.
- Roll face to 180": 0.012" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 2500 F.P.M.

Low drag, shielded bearings for 1-1/4" diameter standard steel stub shafts

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

Double E Group Carbon Fiber 12.0

Specifications - Live Shaft

Live shaft rollers have a shaft (axle) that is fixed to the idler roll and therefore rotates with the roller body. The roller bearing is mounted to the machine frame, generally a pillow block or flange mounted bearing.


Carbon Fiber Live Shaft Illustrations & Specifications

ROLLER SPECIFICATIONS DRAWING

3.0" Nominal Outside Diameter

(P/N: COMPL-3.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 36": 0.003" T.I.R.
- Roll face to 64": 0.005" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

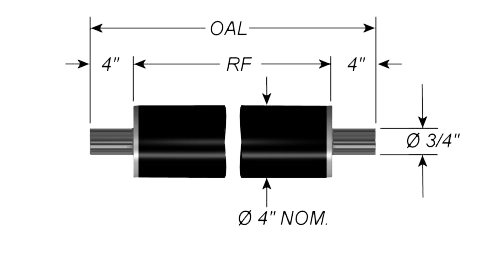

4.0" Nominal Outside Diameter

(P/N: COMPL-4.0-RF-OAL-OS)

Tube: Carbon fiber / epoxy matrix composite. 1/8" Nom. wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 52": 0.003" T.I.R.
- Roll face to 92": 0.006" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

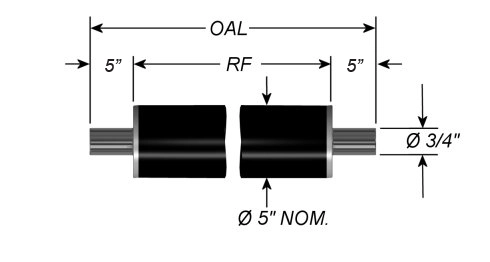

5.0" Nominal Outside Diameter

(P/N: COMPL-5.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 68": 0.005" T.I.R.
- Roll face to 92": 0.007" T.I.R.
- Roll face to 128": 0.009" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

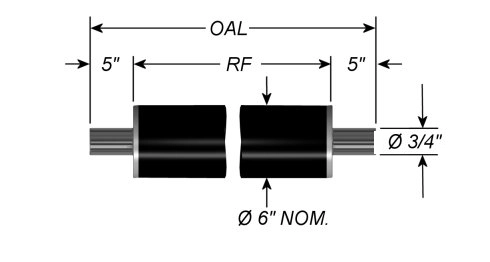

6.0" Nominal Outside Diameter

(P/N: COMPL-6.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 60": 0.005" T.I.R.
- Roll face to 112": 0.008" T.I.R.
- Roll face to 136": 0.010" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

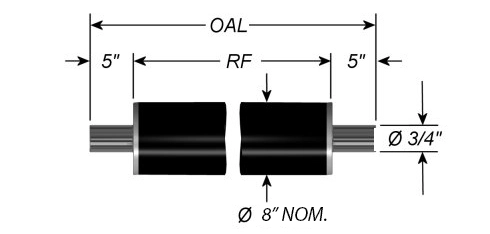

8.0" Nominal Outside Diameter

(P/N: COMPL-8.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wal

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 60": 0.005" T.I.R.
- Roll face to 112": 0.008" T.I.R.
- Roll face to 136": 0.010" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

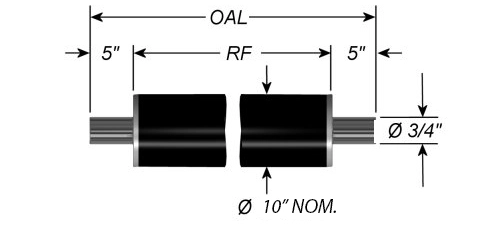

10.0" Nominal Outside Diameter

(P/N: COMPL-10.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 60": 0.005" T.I.R.
- Roll face to 112": 0.008" T.I.R.
- Roll face to 136": 0.010" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit

12.0" Nominal Outside Diameter

(P/N: COMPL-12.0-RF-OAL-OS)

Tube: carbon fiber / epoxy matrix composite. 1/8" nominal wall

Ends: 6061-T6 aluminum

O.D. to bore concentricity:
- Roll face to 60": 0.005" T.I.R.
- Roll face to 112": 0.008" T.I.R.
- Roll face to 136": 0.010" T.I.R.

Taper over face width not to exceed 0.0005"/ft. length (0.002" min.)

Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M.

Journal material: 1018 steel

Please notify salesperson if rolls are to operate in an environment exceeding 170 degrees Fahrenheit
